Bosch Rexroth

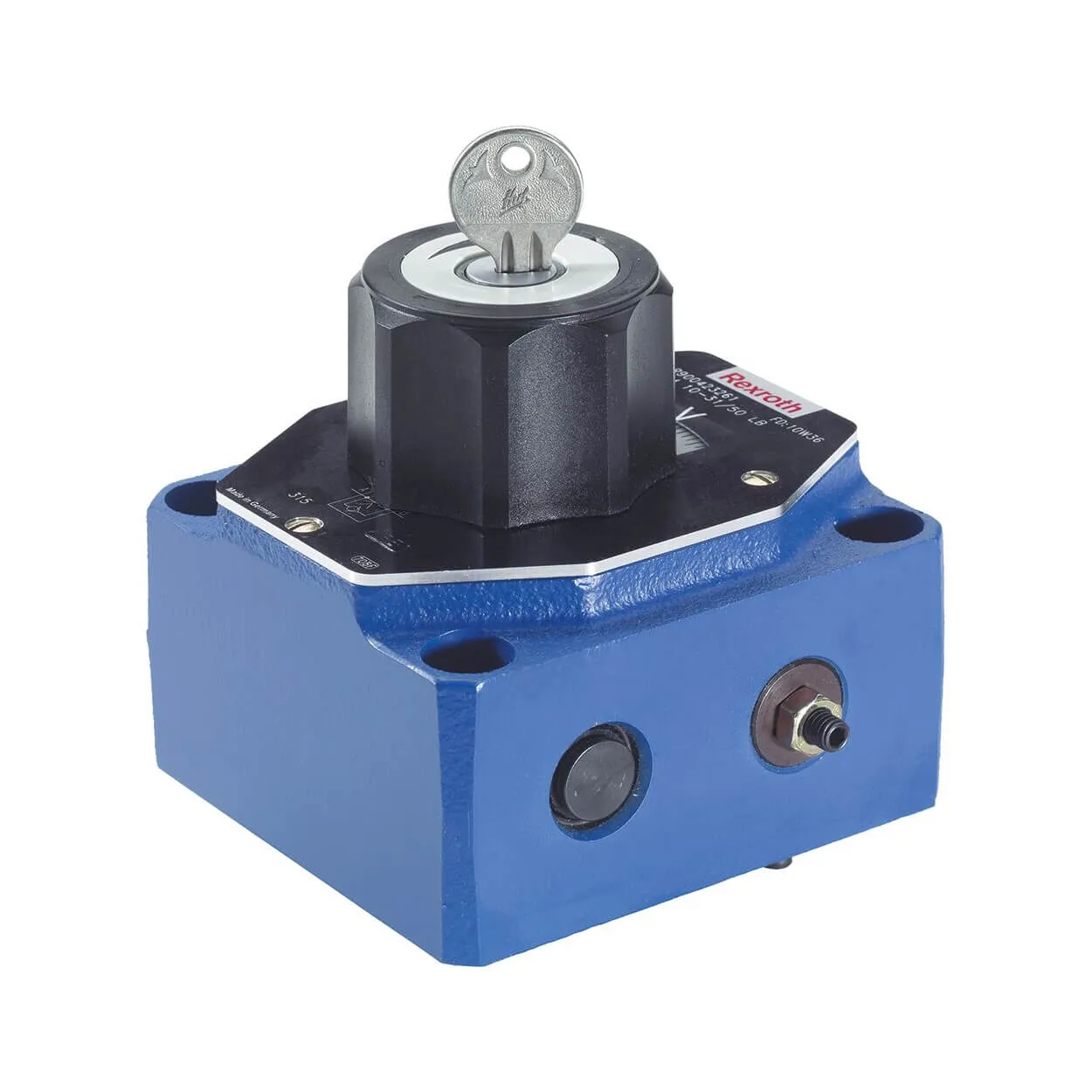

2FRM16-3X/160L 2-Way flow control valve
Material No:
R900424906
The 2FRM valve is a mechanically operated, 2-way flow control valve that ensures a steady flow rate regardless of temperature or pressure variations. To achieve consistent bidirectional flow regulation, a Z4S rectifier sandwich plate can be installed beneath the valve.
Specifications
- Size 10 or 16
- Component series 3X
- maximum operating pressure 315 bar
- Maximum flow 160 l/min
Part Number
Material No
Size
Data Sheet
No items found.
2FRM 16-3X/160L
Material No:
R900424906
Overview
The 2FRM valve is a mechanically operated, 2-way flow control valve that ensures a steady flow rate regardless of temperature or pressure variations. To achieve consistent bidirectional flow regulation, a Z4S rectifier sandwich plate can be installed beneath the valve.
Features
- Subplate mounting
- Porting pattern according to ISO 6263
- Operating Methods:- Mechanical- Hydraulic- Electro-hydraulic
- Pressure compensator stroke limitation for reducing the start-up jump, optional
Specification
- Size 10 or 16
- Component series 3X
- maximum operating pressure 315 bar
- Maximum flow 160 l/min
Applications
