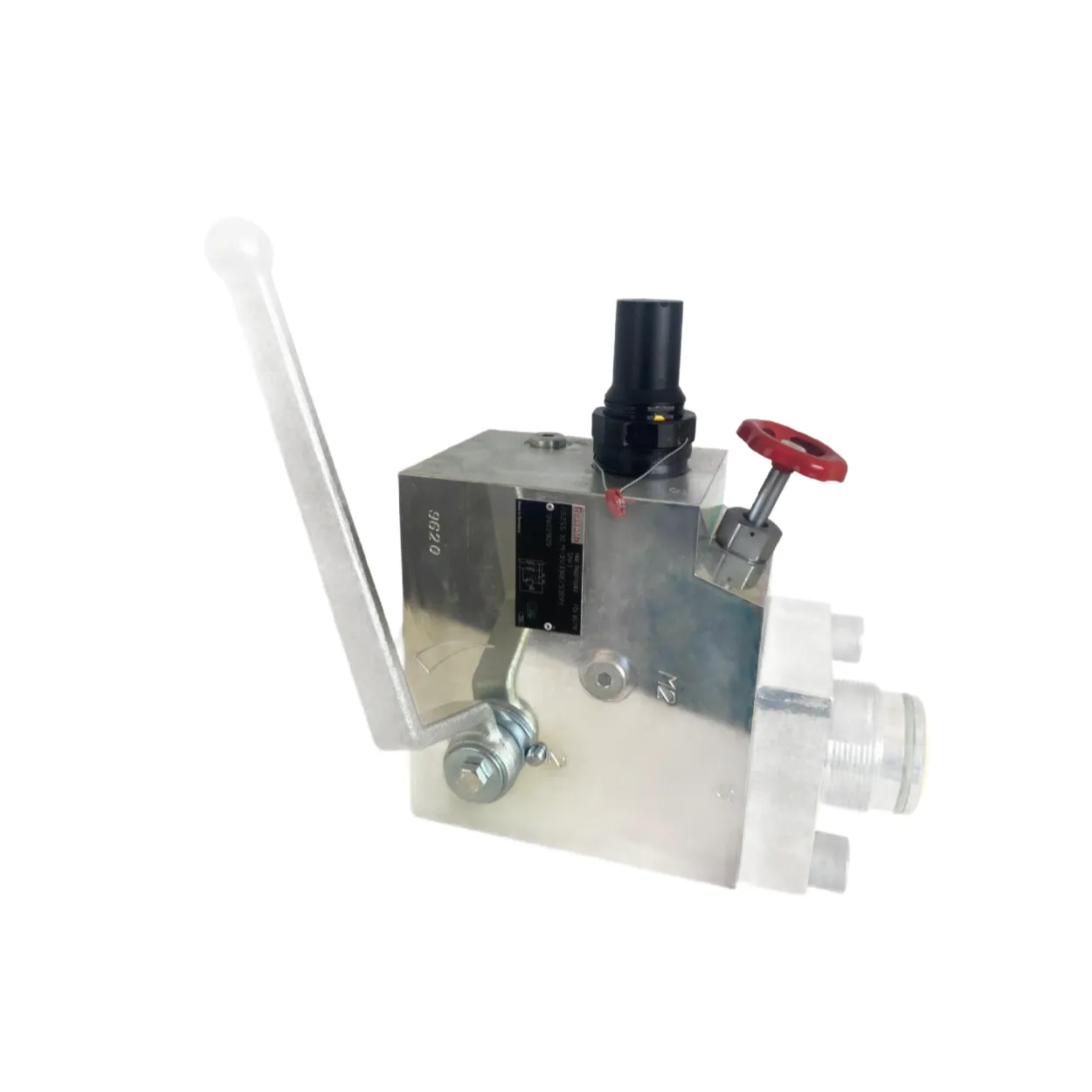

ABZSS20M-3X/330E/S13V Accumulator shut-off block with manual unloading
The accumulator shut-off block is designed to protect, isolate, and unload hydraulic accumulators. Classified according to the Pressure Equipment Directive 2014/68/EU article 4, section 3, it ensures compliance and safety. The connection to the accumulator is achieved using an accumulator adapter. To prevent inadmissible overpressure, a pressure relief valve is included. This valve should not be used for control tasks, and there must be a sufficient difference between the maximum operating pressure and the working pressure to avoid unnecessary activation of the pressure relief valve.
- Nominal diameter DN08; DN10; DN20; DN30
- Maximum operating pressure 350 bar [5075 psi]
- Component series 3X
- Manual unloading
ABZSS20M-3X/330E/S13V
The accumulator shut-off block is designed to protect, isolate, and unload hydraulic accumulators. Classified according to the Pressure Equipment Directive 2014/68/EU article 4, section 3, it ensures compliance and safety. The connection to the accumulator is achieved using an accumulator adapter. To prevent inadmissible overpressure, a pressure relief valve is included. This valve should not be used for control tasks, and there must be a sufficient difference between the maximum operating pressure and the working pressure to avoid unnecessary activation of the pressure relief valve.
- Nominal diameter DN08; DN10; DN20; DN30
- Maximum operating pressure 350 bar [5075 psi]
- Component series 3X
- Manual unloading
