Bosch Rexroth

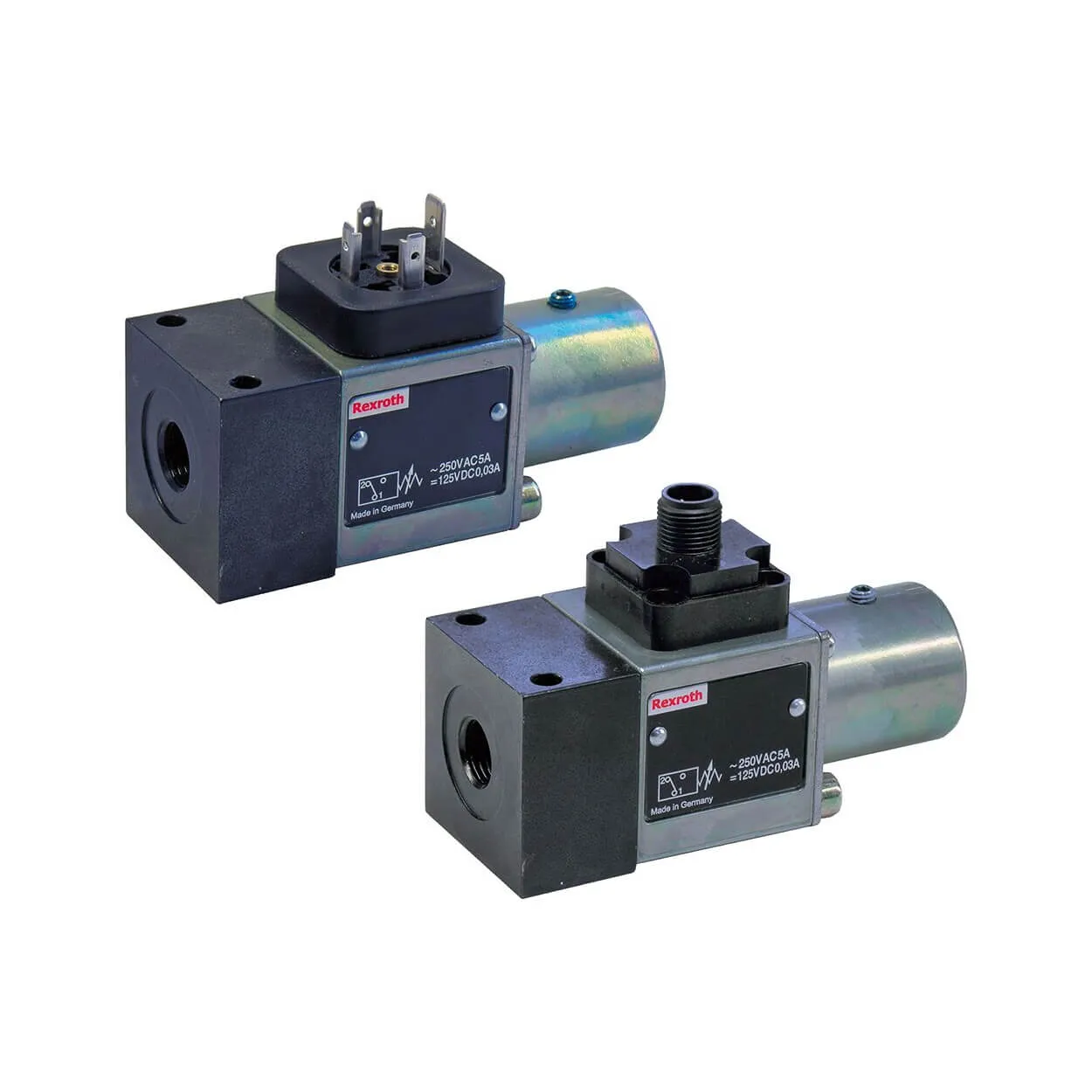

HED8OH-2X/50K14S Hydro Electric Pressure Switch - Flange mounted
Material No:
R901102712
The mechanical pressure switch monitors hydraulic system pressures. Type HED 8 is a piston type pressure switch that activates a micro switch when the pressure exceeds the set point, switching a connected voltage potential-free. The switching points can be adjusted using a spindle or a rotary knob, with or without a scale.
Specifications
- Maximum operating pressure 630 bar
- Component series 2X
Part Number
Material No
Max Pressure Setting
Data Sheet
No items found.
HED 8 OH-2X/50K14S
Material No:
R901102712
Overview
The mechanical pressure switch monitors hydraulic system pressures. Type HED 8 is a piston type pressure switch that activates a micro switch when the pressure exceeds the set point, switching a connected voltage potential-free. The switching points can be adjusted using a spindle or a rotary knob, with or without a scale.
Features
- For subplate mounting/pipeline installation, flange connection or as vertical stacking element with sandwich plates
- 5 pressure ratings
- 4 adjustment types
- Micro switch with NC/NO contact function
- Switching of currents from 1 mA to 2 A
- UL recognized component, CCC-certified
Specification
- Maximum operating pressure 630 bar
- Component series 2X
Applications
