Bosch Rexroth

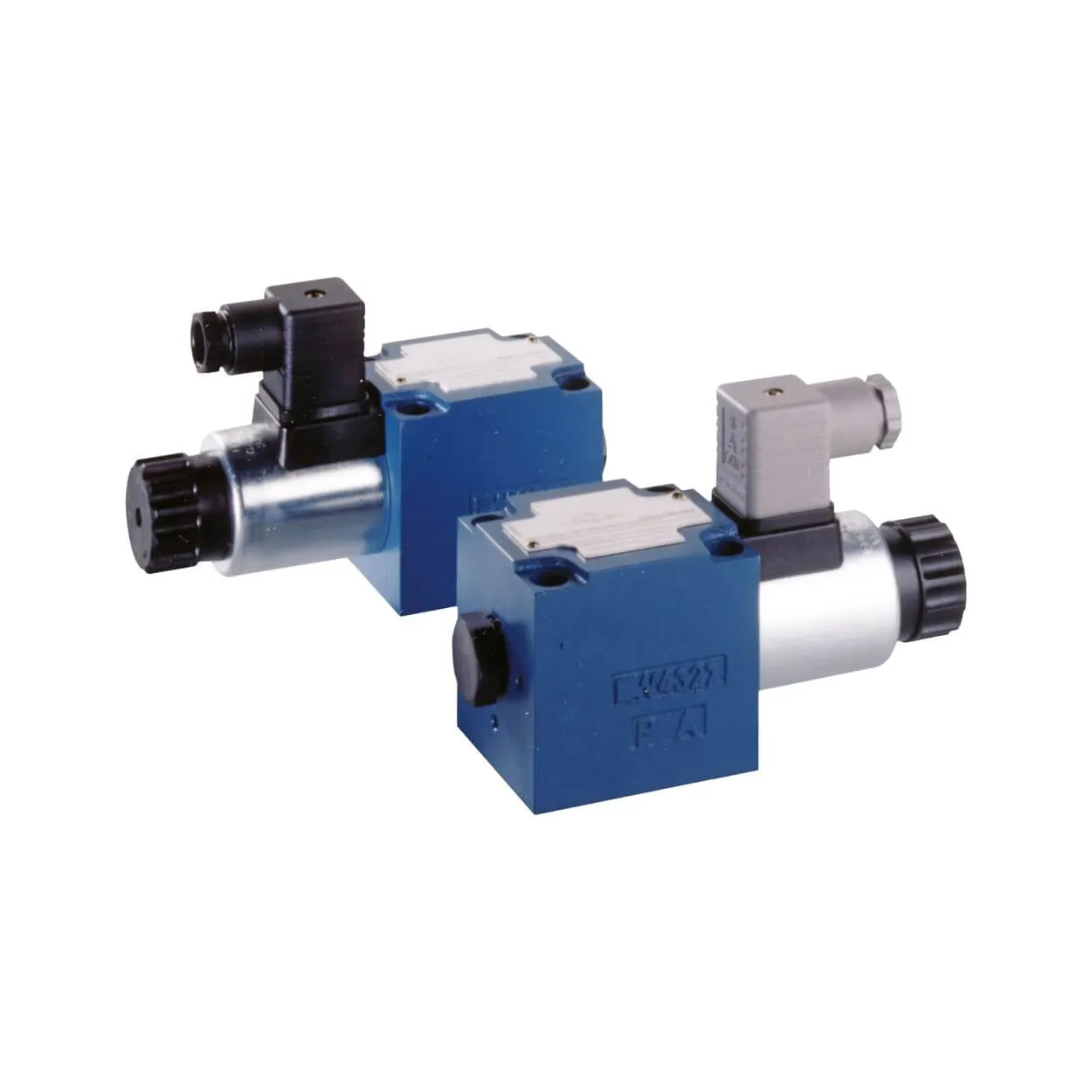

M-3SED10CK1X/350CG96N9K4 Directional Poppet Valve

Material No:
R900053910

The SED type valve is a direct-operated directional seat valve with solenoid actuation, designed to control the start, stop, and flow direction. It connects or isolates connections by lowering or raising a sealing element, such as a poppet or ball, providing leakage-free isolation.

Specifications
  • Size 10
  • Maximum operating pressure 350 bar
  • Maximum flow 40 l/min
  • Component series 1X
Part Number
Material No
Data Sheet
No items found.

M-3SED 10 CK1X/350CG96N9K4

Material No:
R900053910
Overview

The SED type valve is a direct-operated directional seat valve with solenoid actuation, designed to control the start, stop, and flow direction. It connects or isolates connections by lowering or raising a sealing element, such as a poppet or ball, providing leakage-free isolation.

Features
  • 3/2- or 4/2-way version
  • Porting pattern according to ISO 4401
  • Blocked connection is leakage-free
  • Solenoids with detachable coil
  • The coil can be changed without having to open the pressure-tight chamber
  • Safe switching with longer standstill periods under pressure
Specification
  • Size 10
  • Maximum operating pressure 350 bar
  • Maximum flow 40 l/min
  • Component series 1X
