Bosch Rexroth

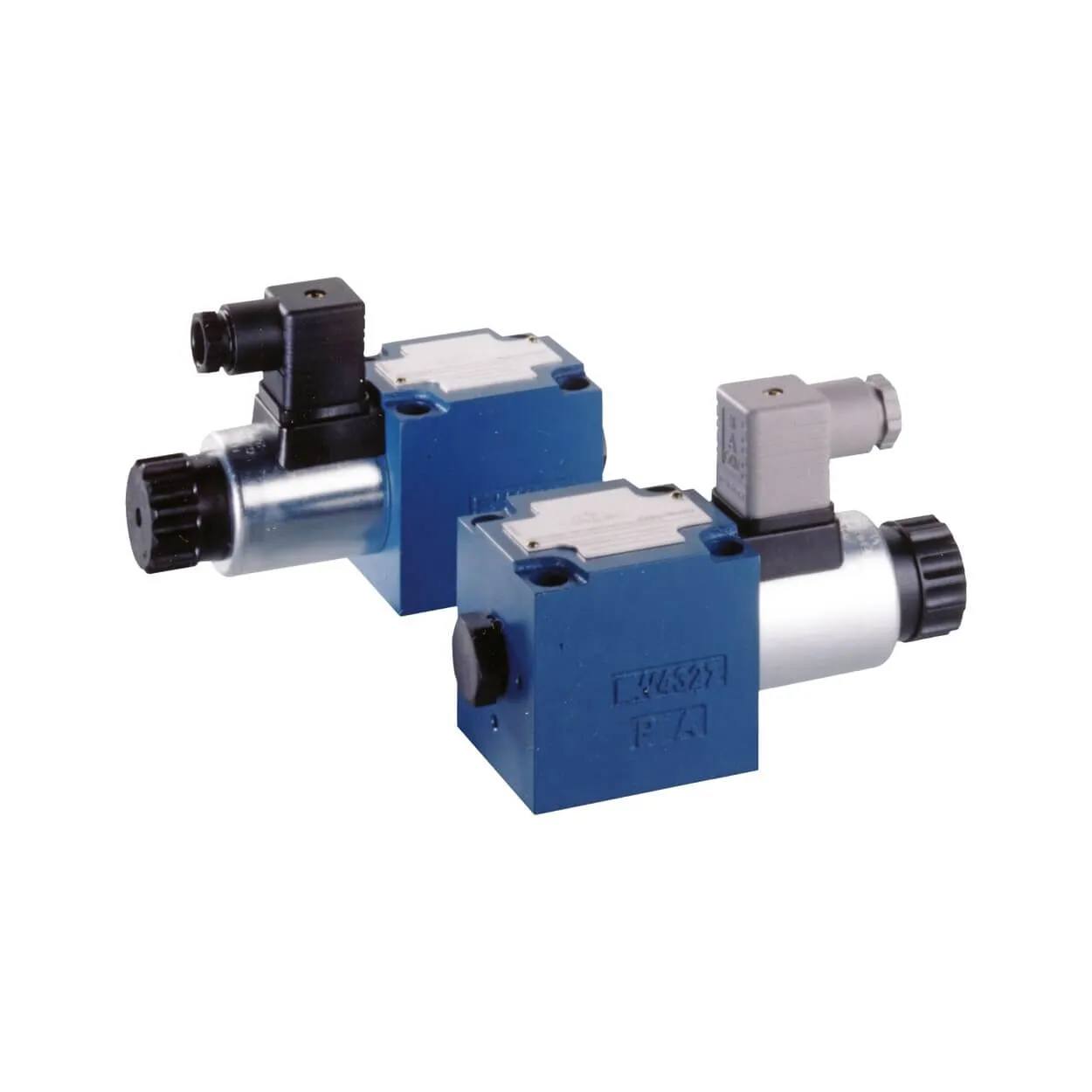

M-3SED10UK1X/350CG24N9K4 Directional Poppet Valve
Material No:
R900051053
The SED type valve is a direct-operated directional seat valve with solenoid actuation, designed to control the start, stop, and flow direction. It connects or isolates connections by lowering or raising a sealing element, such as a poppet or ball, providing leakage-free isolation.
Specifications
- Size 10
- Maximum operating pressure 350 bar
- Maximum flow 40 l/min
- Component series 1X
Part Number
Material No
Size
Data Sheet
No items found.
M-3SED 10 UK1X/350CG24N9K4
Material No:
R900051053
Overview
The SED type valve is a direct-operated directional seat valve with solenoid actuation, designed to control the start, stop, and flow direction. It connects or isolates connections by lowering or raising a sealing element, such as a poppet or ball, providing leakage-free isolation.
Features
- 3/2- or 4/2-way version
- Porting pattern according to ISO 4401
- Blocked connection is leakage-free
- Solenoids with detachable coil
- The coil can be changed without having to open the pressure-tight chamber
- Safe switching with longer standstill periods under pressure
Specification
- Size 10
- Maximum operating pressure 350 bar
- Maximum flow 40 l/min
- Component series 1X
Applications
