Bosch Rexroth

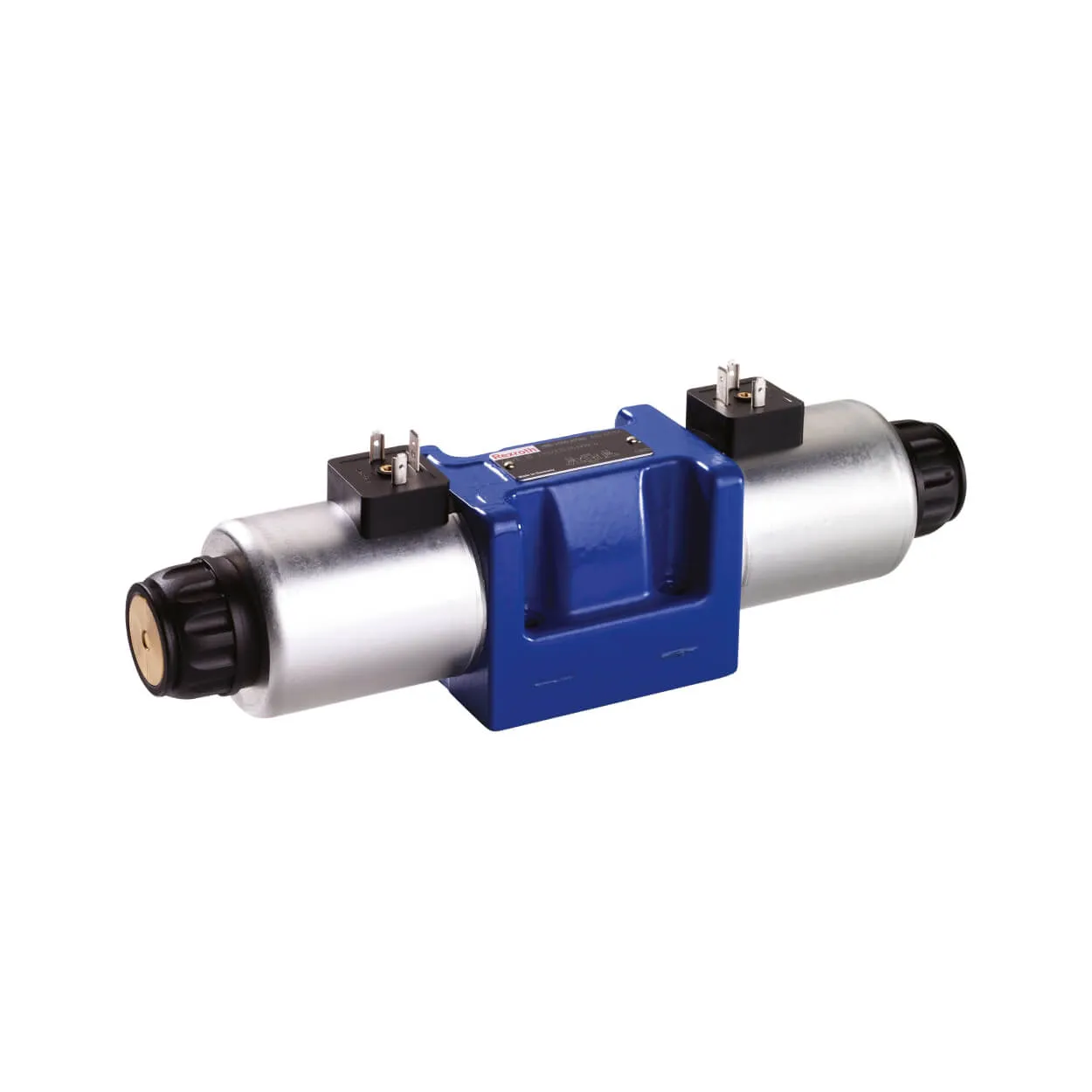

WE10../.C Directional Spool Valve
Material No:
The WE type valve is a direct-operated directional spool valve with solenoid actuation. It manages the start, stop, and direction of flow by moving a control spool within a housing bore, effectively connecting or isolating the flow paths.
Specifications
- Size 10
- Maximum operating pressure 350 bar
- Maximum flow 150 l/min
- Component series 5X
Part Number
Material No
Size
Data Sheet
WE10../.C
Material No:
Overview
The WE type valve is a direct-operated directional spool valve with solenoid actuation. It manages the start, stop, and direction of flow by moving a control spool within a housing bore, effectively connecting or isolating the flow paths.
Features
- 4/3-, 4/2- or 3/2-way version
- Porting pattern according to ISO 4401
- High-power solenoid
- Wet-pin DC or AC solenoids with detachable coil
- The coil can be changed without having to open the pressure-tight chamber
- Central connection possible via double mating connector
Specification
- Size 10
- Maximum operating pressure 350 bar
- Maximum flow 150 l/min
- Component series 5X
Applications
