Bosch Rexroth

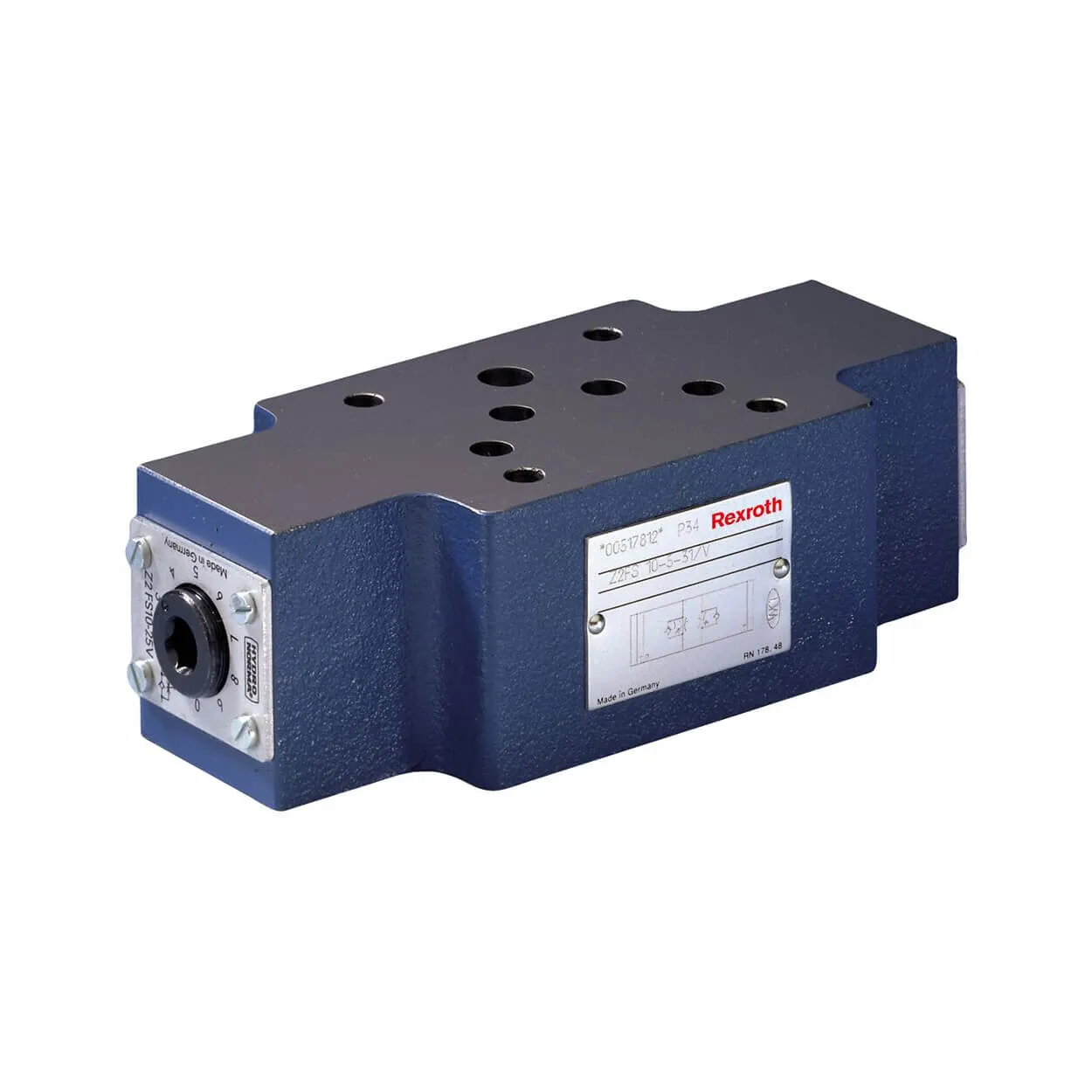

Z2FS10A5-3X/S2V Sandwich Plate Double Throttle/Check Valve
Material No:
R900523578
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Specifications
- Size 10
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
- Component series 3X
Part Number
Material No
Size
Data Sheet
No items found.
Z2FS 10A5-3X/S2V
Material No:
R900523578
Overview
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401
- Adjustment types:- Lockable rotary knob with scale- Spindle with internal hexagon and scale- Rotary knob with scale
- For supply or discharge throttling
Specification
- Size 10
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
- Component series 3X
Applications
