Bosch Rexroth

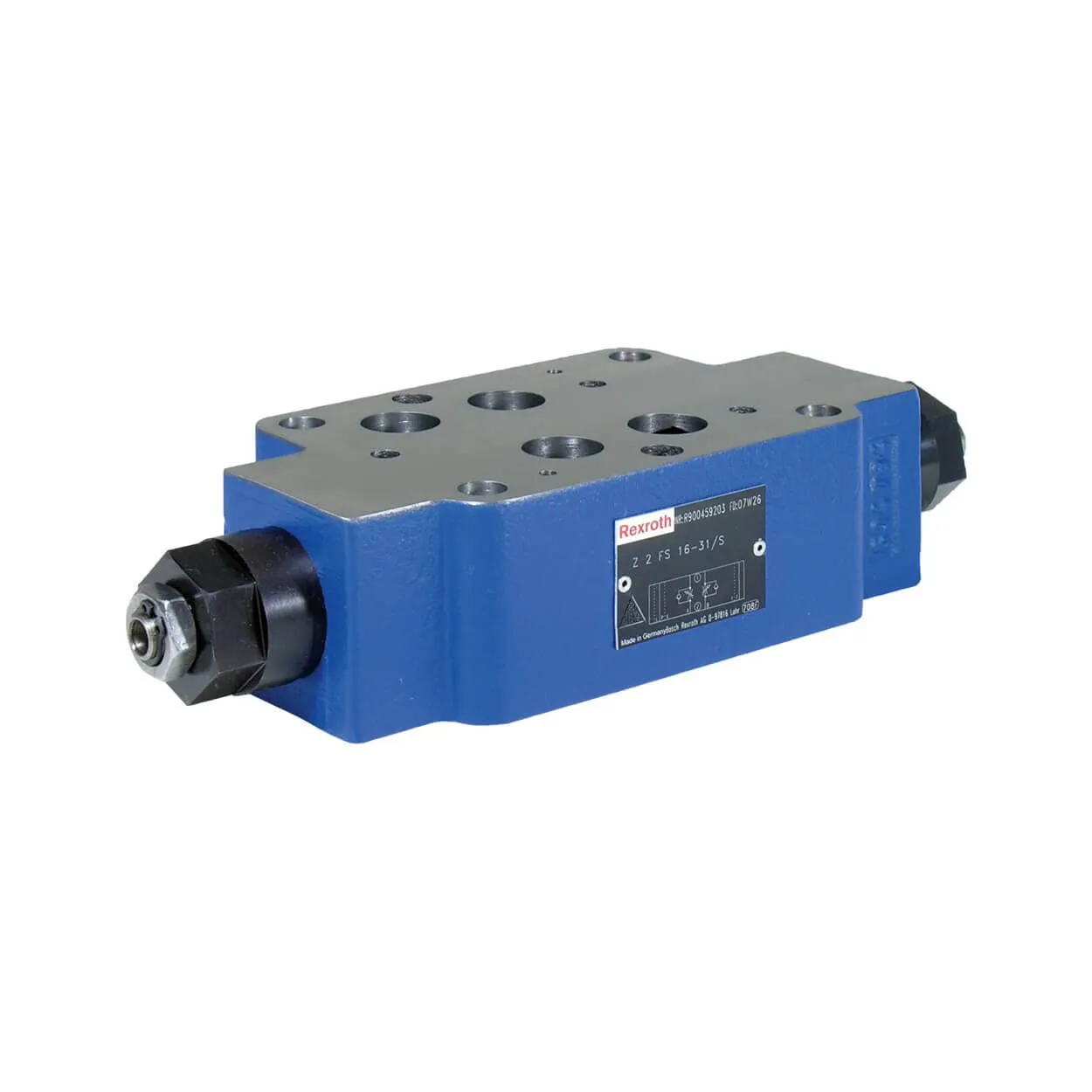

Z2FS16-8-3X/S2 Sandwich Plate Double Throttle/Check Valve
Material No:
R900457256
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Specifications
- Size 16
- Maximum operating pressure 350 bar
- Maximum flow 250 l/min
- Component series 3X
Part Number
Material No
Size
Data Sheet
No items found.
Z2FS 16-8-3X/S2
Material No:
R900457256
Overview
The Z2FS valve is a throttle check valve designed in a sandwich plate configuration, ideal for limiting main or pilot flow in one or two actuator ports. It comprises two throttle check valves aligned symmetrically, which restrict flow in one direction and permit free return flow in the opposite direction.
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401
- Adjustment types: Spindle with internal hexagon and scale
- For supply or discharge throttling
Specification
- Size 16
- Maximum operating pressure 350 bar
- Maximum flow 250 l/min
- Component series 3X
Applications
