Bosch Rexroth

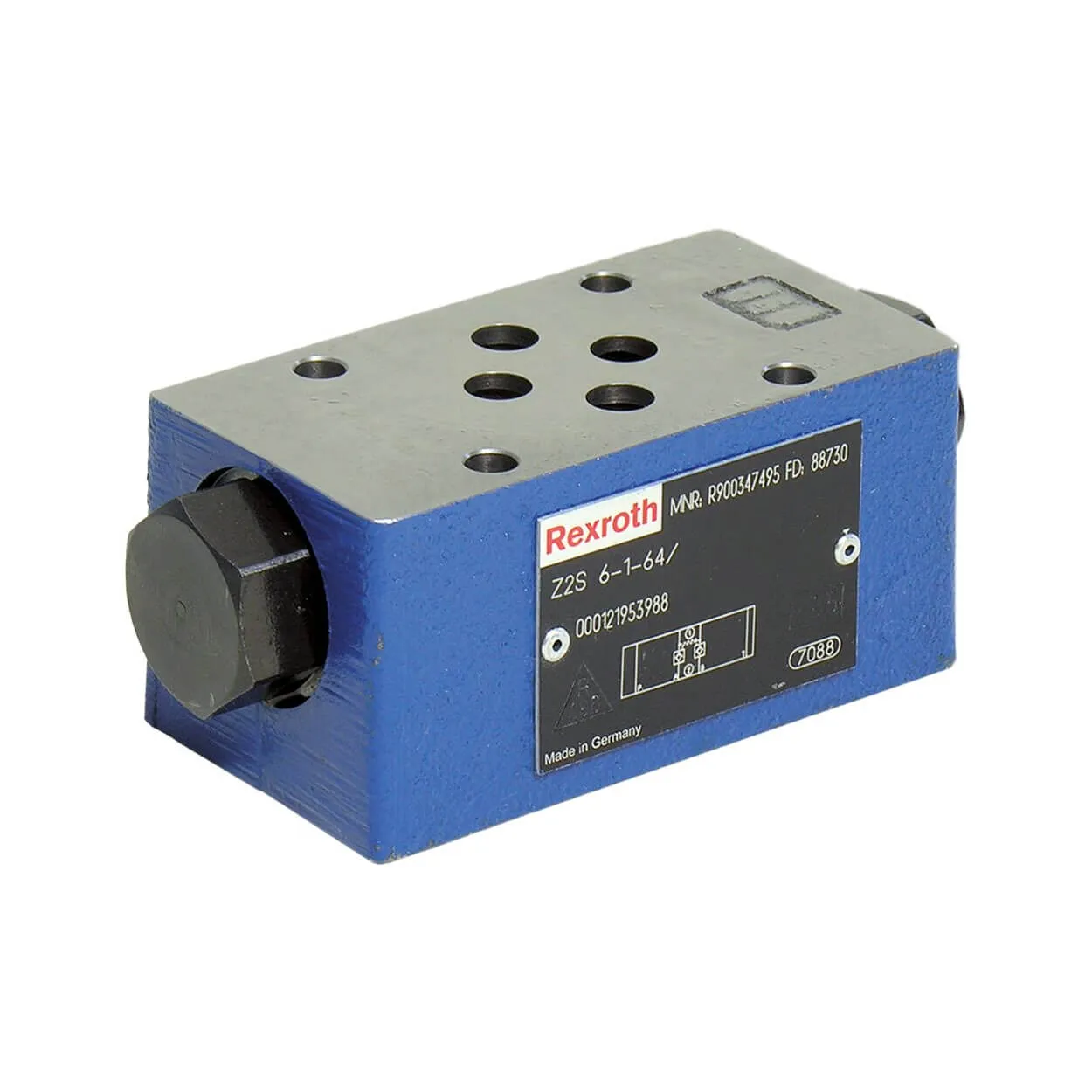

Z2S6A1-6X/ Sandwich Plate Check Valve
Material No:
R900347498
The Z2S valve is a pilot-operated check valve in a sandwich plate design, ideal for leakage-free blocking of one or two actuator ports, even during prolonged standstill periods. The two-stage setup with an increased control open ratio ensures safe unloading at lower pilot pressures.
Specifications
- Size 6
- Component series 6X
- Maximum operating pressure 315 bar
- Maximum flow 60 l/min
Part Number
Material No
Cracking Pressure
Data Sheet
No items found.
Z2S6A1-6X/
Material No:
R900347498
Overview
The Z2S valve is a pilot-operated check valve in a sandwich plate design, ideal for leakage-free blocking of one or two actuator ports, even during prolonged standstill periods. The two-stage setup with an increased control open ratio ensures safe unloading at lower pilot pressures.
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401
- For the leakage-free blocking of one or two actuator ports
- Different opening pressures
- With pre-opening
Specification
- Size 6
- Component series 6X
- Maximum operating pressure 315 bar
- Maximum flow 60 l/min
Applications
