Bosch Rexroth

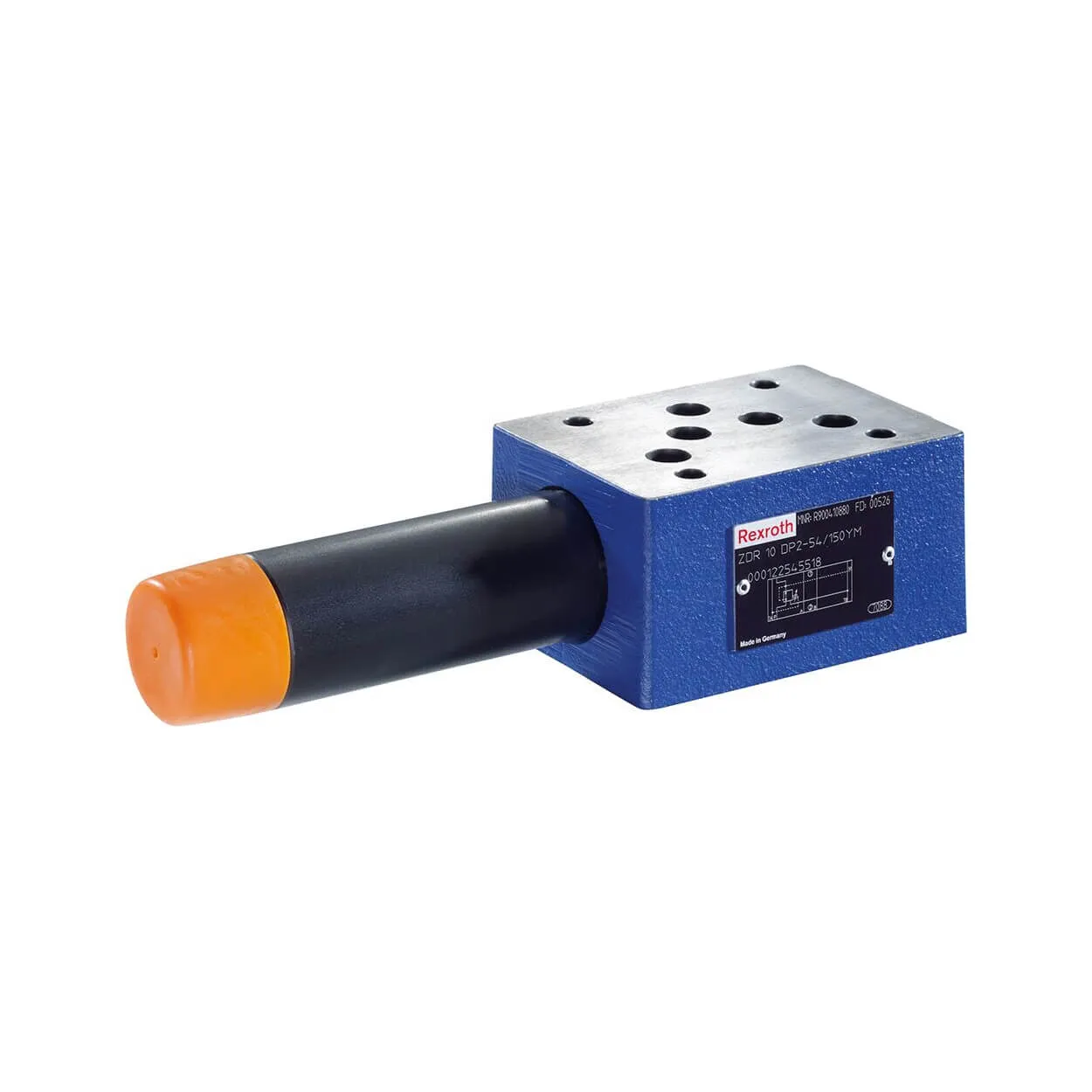

ZDR10DA2-5X/75Y Sandwich Plate Pressure Reducing Valve
Material No:
R900438008
The ZDR valve is a direct-operated pressure reducing valve designed in a sandwich plate configuration. It ensures that the output pressure (actuator or secondary pressure) remains constant at a value lower than the variable pressure in the main circuit (inlet or primary pressure).
Specifications
- Size 10
- Maximum operating pressure 210 bar
- Maximum flow 80 l/min
- Component series 5X
Part Number
Material No
Size
Data Sheet
No items found.
ZDR 10 DA2-5X/75Y
Material No:
R900438008
Overview
The ZDR valve is a direct-operated pressure reducing valve designed in a sandwich plate configuration. It ensures that the output pressure (actuator or secondary pressure) remains constant at a value lower than the variable pressure in the main circuit (inlet or primary pressure).
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401
- 4 pressure ratings
- Adjustment types:- Rotary knob- Bushing with hexagon and protective cap - Lockable rotary knob with scale- Rotary knob with scale
- Pressure reduction in channel A, B or P
- Check valve, optional
Specification
- Size 10
- Maximum operating pressure 210 bar
- Maximum flow 80 l/min
- Component series 5X
Applications
